Frame
Teammachine SLR 01 Premium Carbon with Aerocore Design
ICS Technology Stealth Cable Routing
Integrated Aerocore Bottle Cages
Stealth Dropout Design
TCC Race Compliance Level
PF86 Bottom Bracket
Flat Mount Disc
12x142mm Thru-AxleFork
Teammachine SLR 01 Premium Carbon
ICS Technology Stealth Cable Routing
TCC Race Compliance Level
Stealth Dropout Design
Flat Mount Disc
12x100mm Thru-AxleTire Clearance
30mm (Measured Width)Extras
Aerocore Bottle CagesWeight Limit
110 KgASTM Classification
Level 1

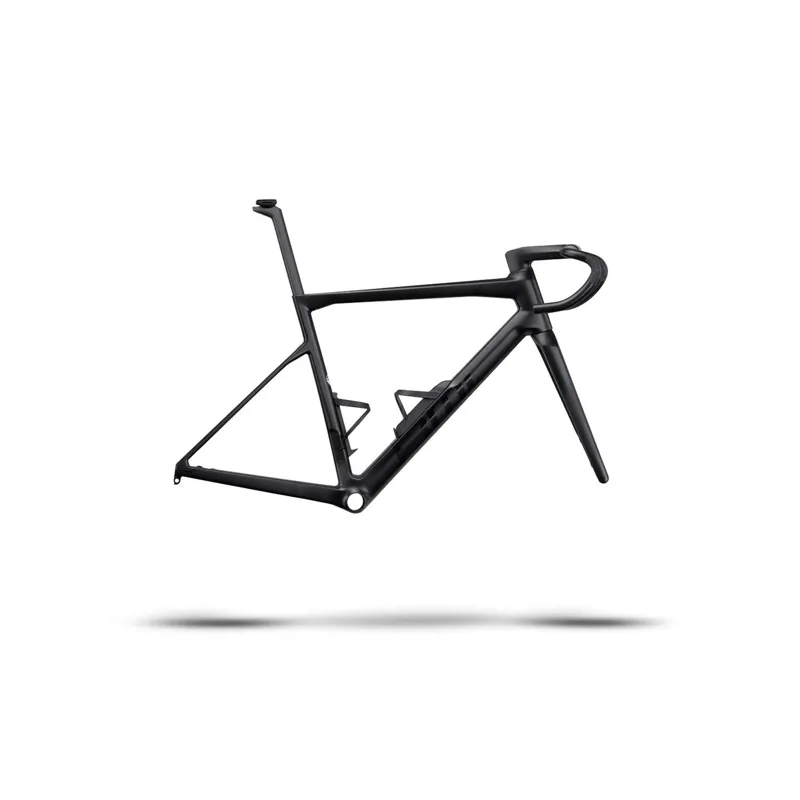

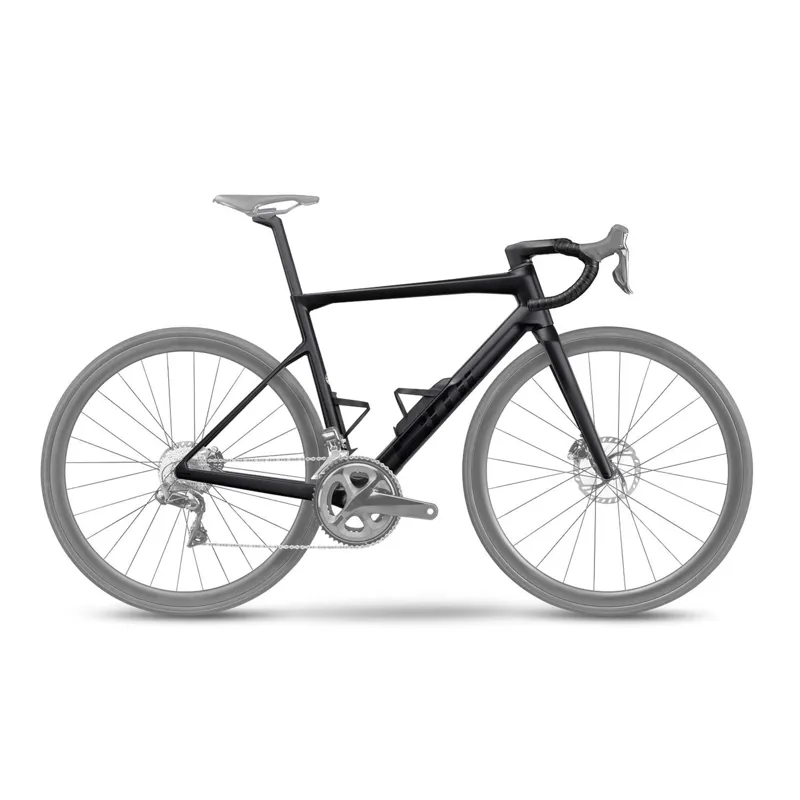

Frameset
- Teammachine SLR 01 premium ACE carbon frame with Aerocore design, Tuned Compliance Concept Race
- Teammachine SLR 01 premium ACE carbon fork with Aerocore design, Tuned Compliance Concept Race
- Teammachine SLR 01 premium ACE carbon D-shape seatpost
Teammachine SLR01 features Integrated Cockpit System (ICS) technology to deliver a completely integrated cockpit and cable routing. ICS technology requires a specific fork design, easily identified by the rectangular steerer.*
Technical Details
- Aerocore: aerodynamic featherweight carbon bottle cage system
- Downtube bottle cage
- Seat tube bottle cage
- Stealth cable management
- Integrated seat clamp
- Easy access Di2 junction box integrated in downtube
- Stealth droputs with dedicated stealth thru-axles
- ASTM level 1
Only use stealth thru-axles provided with Teammachine SLR01 and Teammachine SLR bikes and modules. Stealth dropouts and thru-axles are compatible with most direct-drive indoor trainers.*
Sizes
47, 51, 54, 56, 58, 61
Frame Weight**
820 g
Fork Weight**
345 g
Seatpost Weight**
185 g

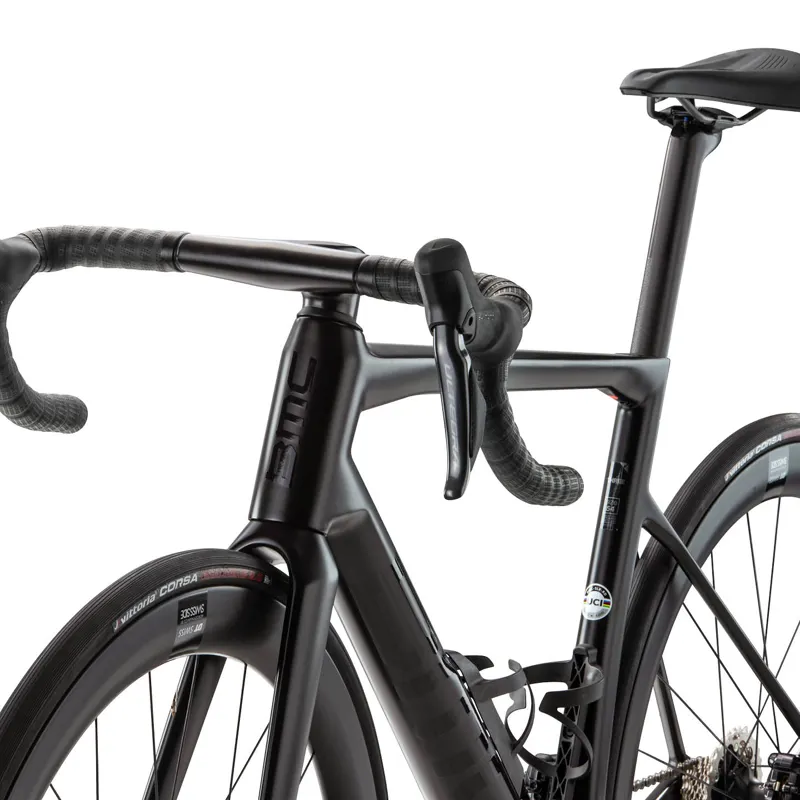

Cockpit
ICS Carbon Cockpit - Superlight Integrated Cockpit System
- One-piece design-optimized for low weight and stiffness
- Handlebar reach/drop: 67/127 mm
- Stem angle: -15˚
- Handlebar reach/drop and stem angle are the same for every ICS carbon cockpit
- Bar width & stem length: 400x90 mm, 420x100 mm, 420x110 mm, 420x120 mm
- 305 g (complete cockpit)
ICS2 with RAB02 Bar
- Premium, 2nd generation Integrated Cockpit System stem with internal cable routing and easy fit adjustment
- Handlebar reach/drop: 70/125 mm (RAB02)
- Stem angle: -15˚ (ICS2)
- 185 g (stem)
Teammachine SLR01 is compatible with any ICS cockpit configuration using the dedicated topcones (ICS Carbon, ICS Aero, ICS2, ICS01, ICS01 0 Degrees).*
Compatibility
Frame, Fork and Seatpost
- ICS specific fork with tapered steerer, flat mount
- Compatible with electronic groupsets only
- PF86 bottom bracket
- D-Shape seatpost
- Braze-on front derailleur mount
- Replaceable ultra light sandwich rear derailleur hanger
Brakes
- Front brake: flat mount, 160 mm rotors only
- Rear brake: flat mount, 140/160 mm rotors
Wheels and Axles
- Designed for 25 mm, maximum tire clearance 30 mm (actual measured width)
- Front stealth thru-axle: 12x100 mm (diameter/frame spacing)
- Rear stealth thru-axle: 12x142 mm (diameter/frame spacing)
*Notes about proprietary technology
**Weight for the lightest finish, including complete hardware with size 54 frames
*** More info about ASTM classication on our website
